Trailers

BPI Manufacturing Trailers

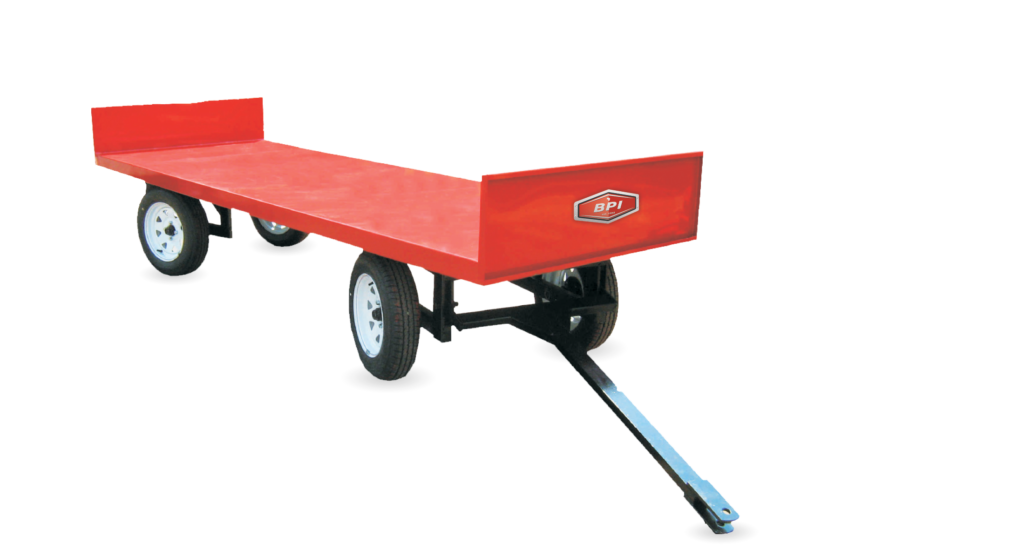

BPI | TWIN TURN TABLE TRAILER

The twin turn table trailer is connected to the tractor via a sturdy A-type draw bar and can hook up to twelve trailers behind each other. When the front trailer turns the rear trailer(s) will follow. Twin turn table trailers have a unique design enabling the tractor to make a 180° turn coming down the vineyard and the following trailers will still be following each other. The twin turn table trailers come in two lengths, 3.0m and 3.6m, with front and rear headboards.

BPI | ATLAS TIPPER TRAILER

The ATLAS tipper trailer series has a compact design transporting various items and has a high daily performance, which is achieved by a balanced ratio of weight and utility body volume. Multi-purpose trailers are a solution for cheap and fast transport of all materials. The trailers can be fitted with an expanded metal cage and trailers can then be used for many different tasks. These trailers are built on a heavy duty chassis and a four-stage telescopic hydraulic cylinder.

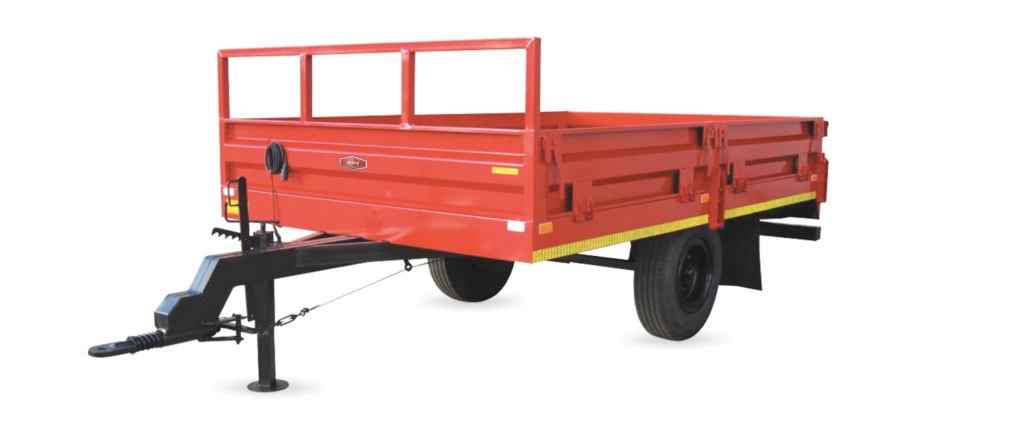

BPI | 2-WHEEL FLAT BED & DROP SIDE TRAILER

The 2-wheel flat bed trailer is suitable for small agricultural farmers. 2-wheel trailers respond more accurately to the movements of the tractor as more than one 2-wheel trailer can be tailed behind one another. The 2-wheel non-tip trailers are available in the following capacities: 3 and 5 ton with or without drop sides. Hydraulic braking systems are available on all models.

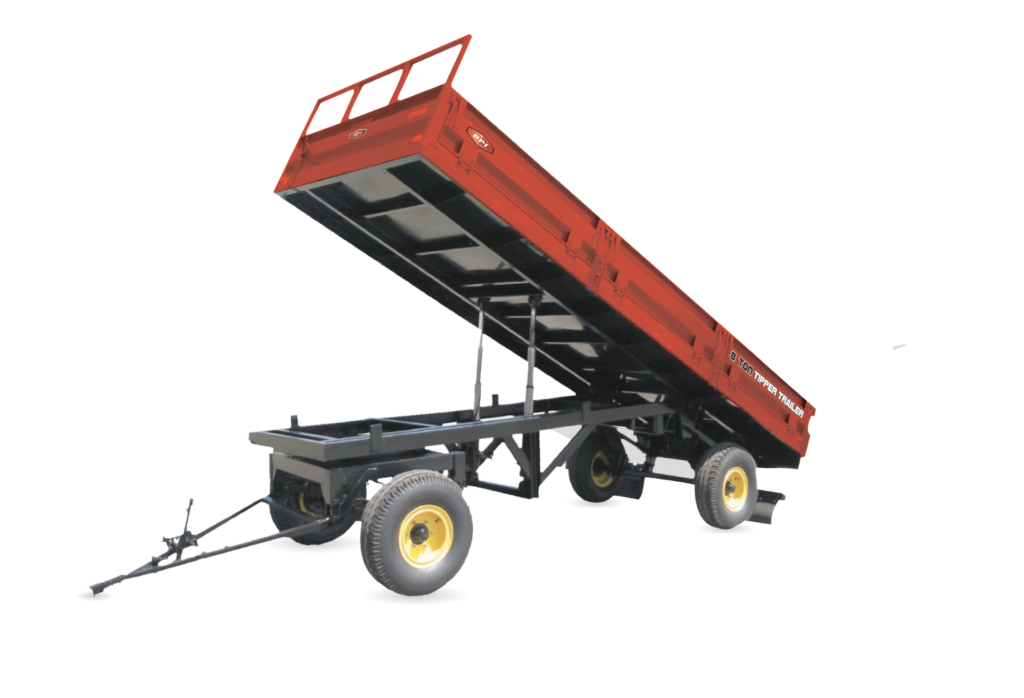

BPI | 8, 10 TON TIPPER TRAILER

The BPI 4-wheel tipper trailer series has a compact design and has a high daily performance, which is achieved due to a balanced ratio of weight and utility body volume. Multi-purpose trailers are a solution for cheap and fast transport of all materials. The trailers can be fitted with an expanded metal cage and trailers can then be used for many different tasks. The trailers are also built on a heavy duty chassis and a four-stage telescopic hydraulic cylinder.

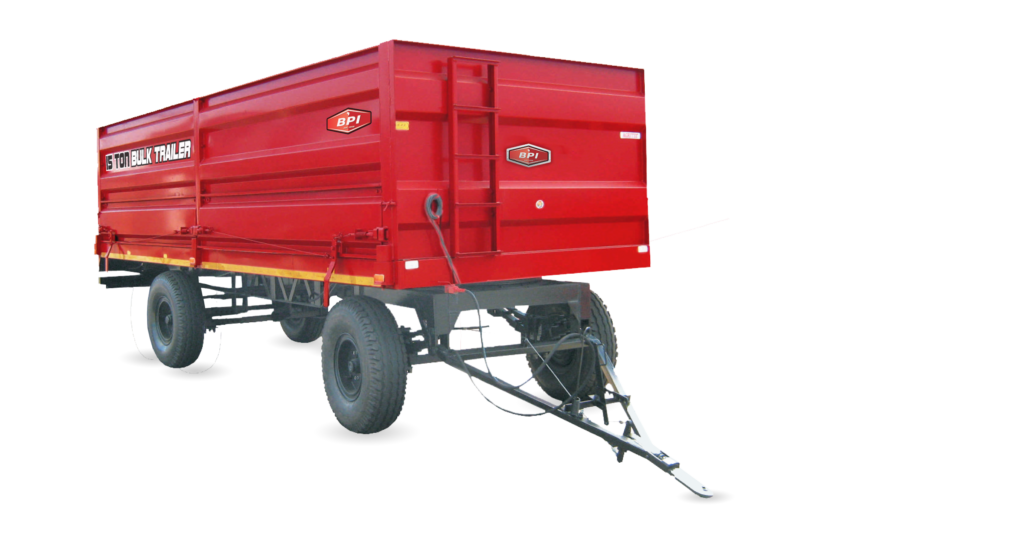

BPI | 10, 15 TON BULK TRAILER

The BPI low speed bulk trailers are reliable and durable. These bulk trailers are available in 10 – 15 ton models. The bulk trailer presents the farmer with an affordable solution of handling bulk loads of grain during harvesting. The removable sides offer the opportunity to convert into a flat deck trailer during the off-season for multi-purpose use. A larger carrying capacity of 15 tons allows optimization of the cost per ton ratio by as much as 50%.

BPI | 20 TON SIDE TIP TRAILER

The BPI 20 ton tri-axle 6-wheel side tipper trailer has a compact design transporting various items and thus has a high daily performance, which is achieved due to a balanced ratio of weight and utility body volume. Multi-purpose trailers are a solution for cheap and fast transport of all materials. The trailers are built on a heavy duty chassis and with triple four-stage telescopic hydraulic cylinders.

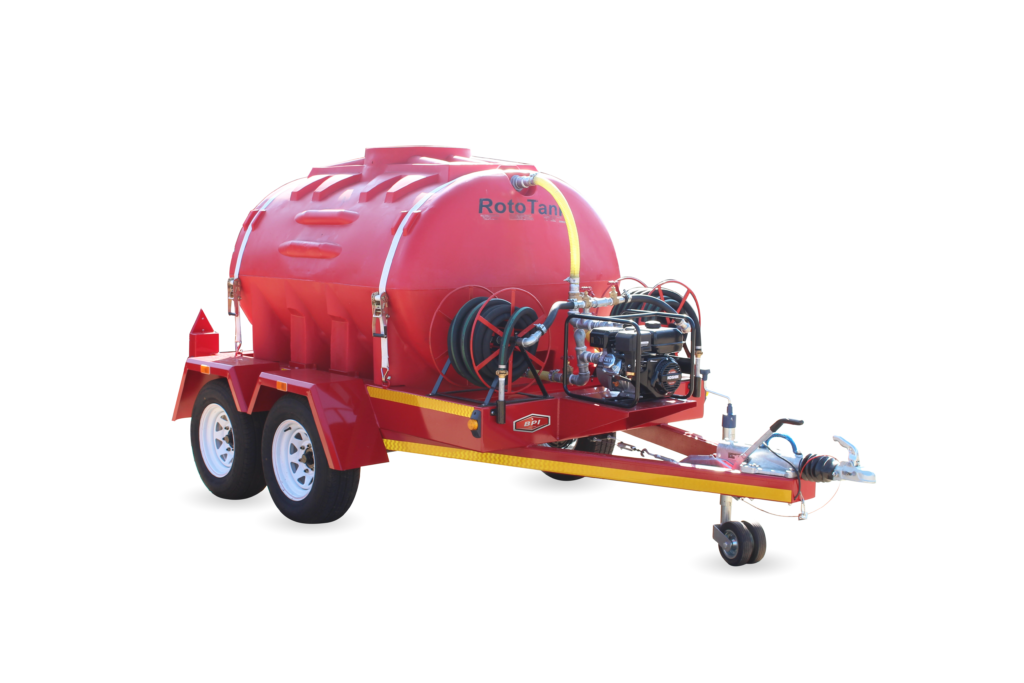

BPI | BAKKIE FIRE FIGHTER

The bakkie fire fighter is equipped with double hose reels with 15m of hose each, as well as a 2 500ℓ polyethylene tank. This fire fighter has a petrol water pump (low volume, high pressure) and also features: double brake axles; handbrake; ruggedly constructed chassis; easily operated parking jack and an easy fill system (fills from dam or canal by means of a suction pipe). All models come with a 1-year warranty on workmanship and non-wearing components.

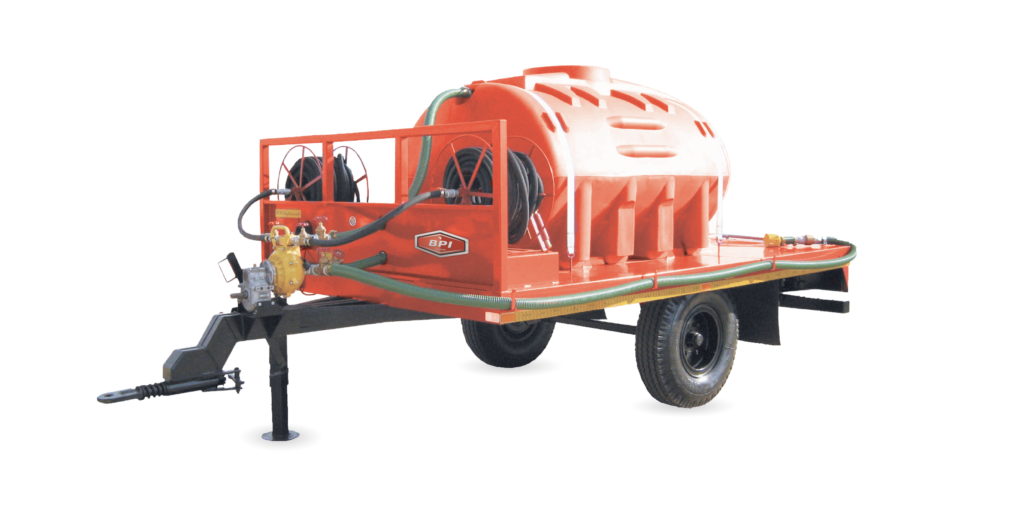

BPI | 2 500ℓ & 5 000ℓ FIRE FIGHTING TRAILER

The bakkie fire fighter is equipped with double hose reels with 15m of hose each, as well as a 2 500ℓ polyethylene tank. This fire fighter has a petrol water pump (low volume, high pressure) and also features: double brake axles; handbrake; ruggedly constructed chassis; easily operated parking jack and an easy fill system (fills from dam or canal by means of a suction pipe). All models come with a 1-year warranty on workmanship and non-wearing components.

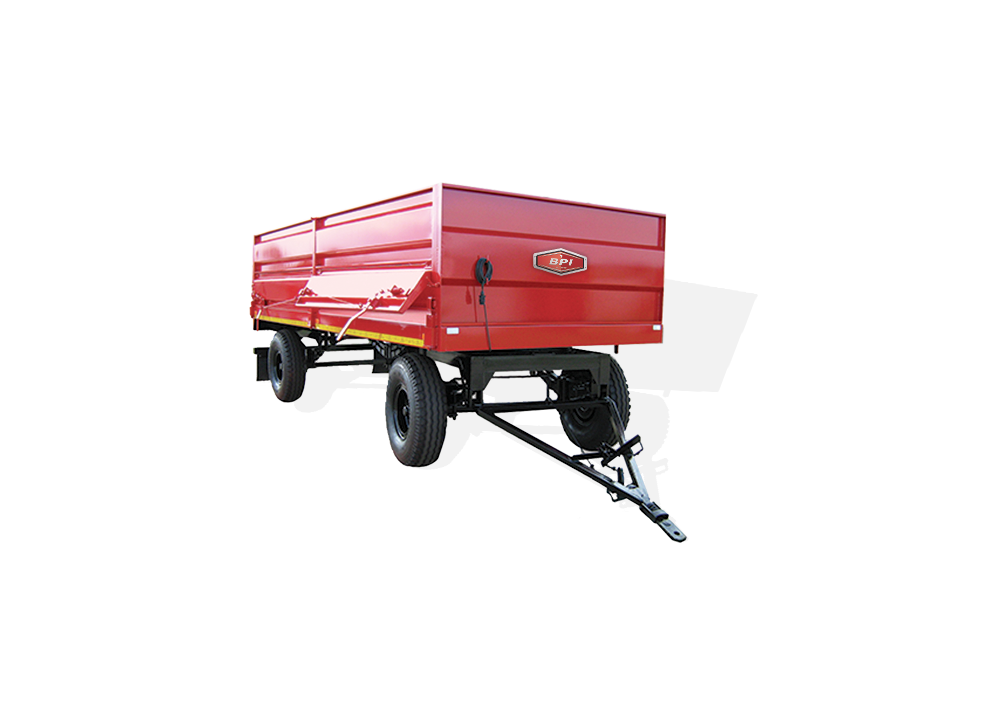

BPI | 6, 8, 10 TON FLAT BED & DROP SIDE TRAILER

The 4-wheel trailers are suitable for all agricultural farmers and come in sizes ranging from 6 – 10 ton, with or without drop sides. These trailers can be fitted with: a hydraulic braking system and an easily removable upper structure to configure as a flat deck trailer from 6 – 10 ton payload. Modular design enhances the replacement of welded components. Colour coded options are available according to the client’s tractor brand.

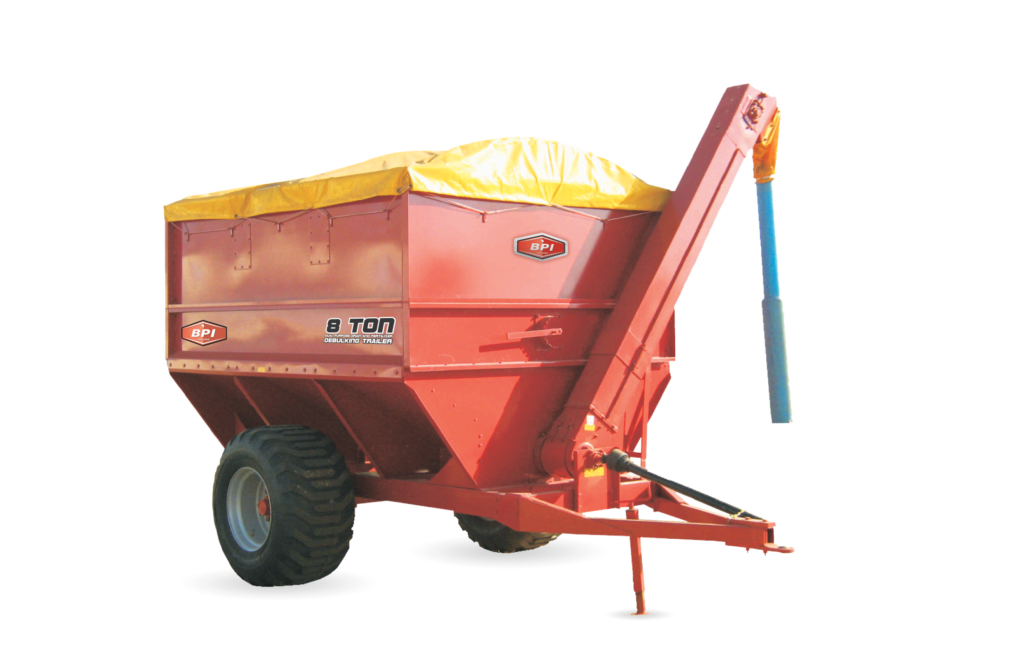

BPI | 8 TON DEBULKING TRAILER

The dual-purpose de-bulking trailer is the logistic link for grain transportation between the moving harvester and transport vehicles. During the time that the de-bulking trailer receives, transports and transfers the grain, the harvester continues to work without interruptions, increasing harvesting productivity. It has the ability to de-bulk not only harvested crop, but also fertilizer with great efficiency. The vertical chute has a conveyor chain that moves the material up and into the trailer.

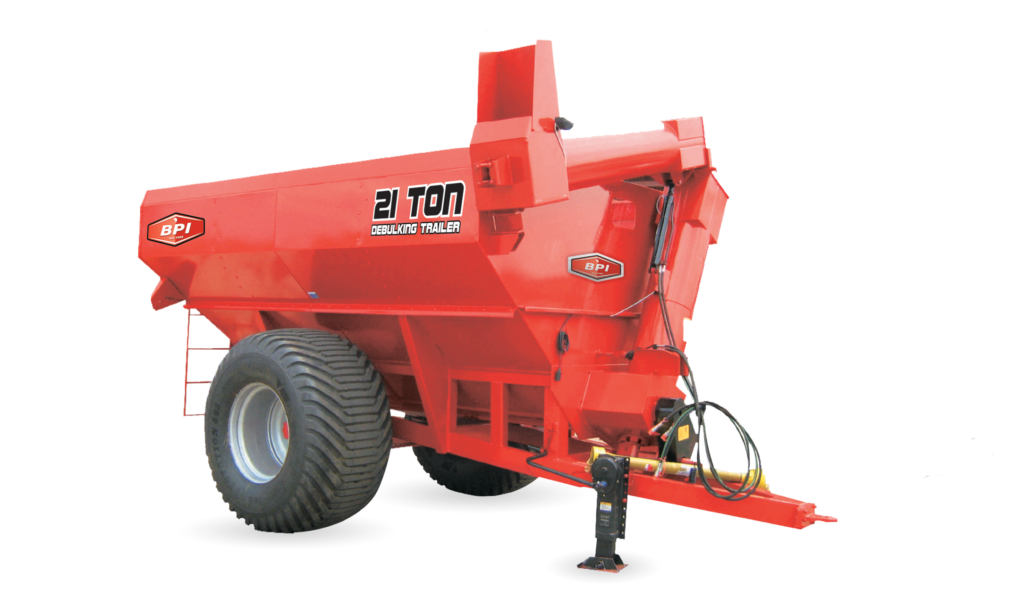

BPI | 14, 18, 21 TON DEBULKING TRAILER

Harvest efficiency is pushed to the max with a 4.5 ton discharge rate per minute. The driver has a 100% unloading visibility from the tractor’s cab. Sizes range from 14 – 21 ton capacity. A sump design funnels all grain by means of an auger to the transfer case, helping to feed the discharge auger for faster unloading. The front hydraulic folding auger gives better reach to fill the grain truck and the sump can be opened manually to discharge the grain into a pit.

BPI | 15 TON BULK TRAILER

The compact BPI 15 Ton 4-wheel side tipper trailer is designed for transporting various items. It achieves a high daily performance through a balanced ratio of weight and utility body volume. Multi-purpose trailers are a solution for cheap and fast transport of various materials. The trailers are built on a heavy-duty chassis and with double, four-stage telescopic hydraulic cylinders.

BPI | 34 TON DUAL-PURPOSE DEBULKING TRAILER

Harvesting is a breeze with a BPI 34- ton Dual-Purpose Debulking Trailer. Harvest efficiency is pushed to the max with a 10 ton/min discharge rate. The auger mounted on the front of the Debulking Trailer ensures 100% unloading visibility from the tractor’s cab. A unique sump design funnels all grain by means of an auger to the transfer case, helping to feed the discharge auger for faster unloading compared to other grain carts. The front hydraulic folding auger gives better reach to fill the grain truck. The sump can be opened manually to discharge the grain into a pit and makes it easier to clean out. When the auger is closed, a 25mm pin is welded on the cradle that secures the auger while in storage or in transport.

Erdvark Trailers

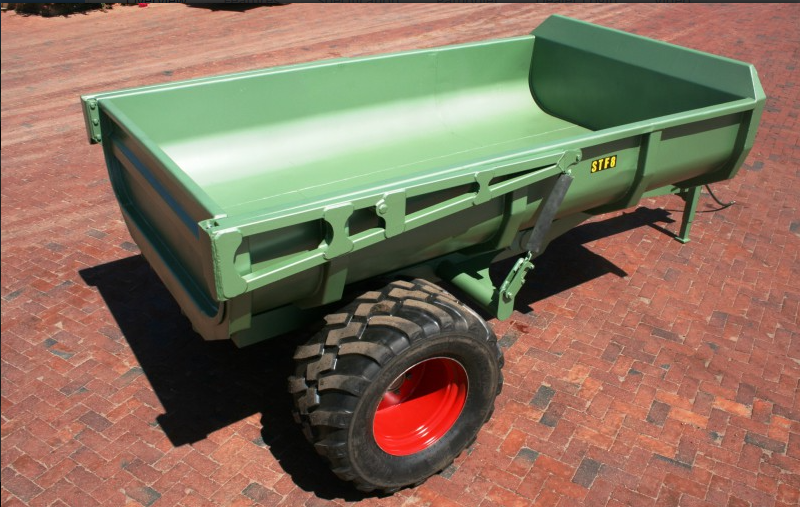

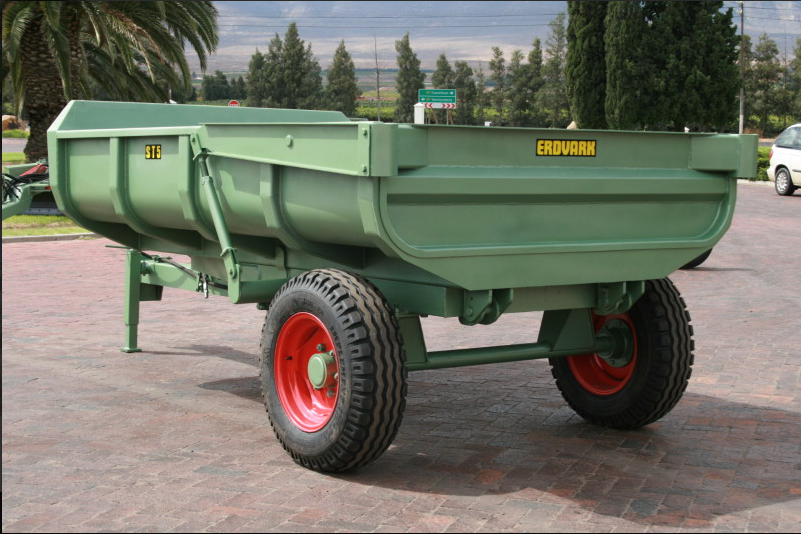

Erdvark 3 Ton Heavy Duty Stone

Load Body Width: 1.80m

Load Body Length: 2.5m

Side: 400mm

Tyres: 10.5/65-16

Heavy duty 2 wheel tip trailer with 6mm load body. Ideal for removing stones from feilds and building of roads.

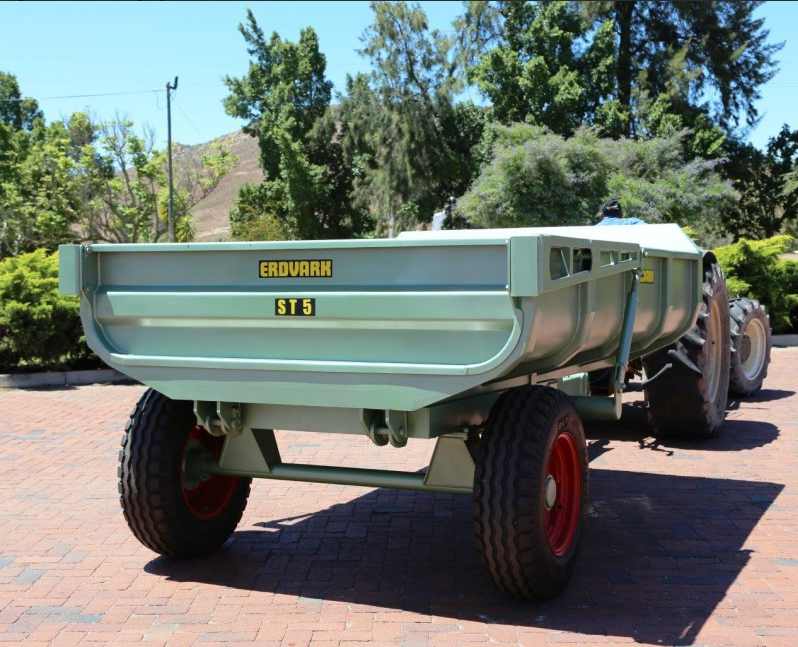

Erdvark 5 Ton Heavy Duty Stone

Load Body Width: 2.00m

Load Body Length: 3.00m

Side: 500mm

Tyres: 10.5/80-18

Heavy duty 2 wheel tip trailer with 6mm load body. Ideal for removing stones from feilds and building of roads.

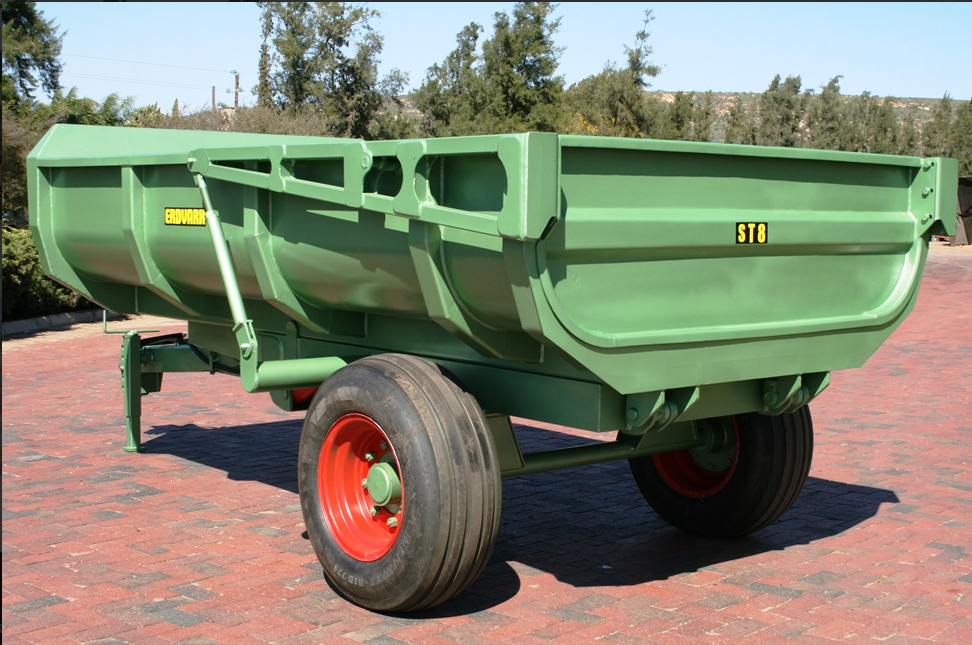

Erdvark 8 Ton Heavy Duty Stone

Load Body Width: 2.30m

Load Body Length: 3.50m

Side: 600mm

Tyres: 12.0/18

Heavy duty 2 wheel tip trailer with 6mm load body. Ideal for removing stones from feilds and building of roads.

Erdvark 8 Ton Heavy Duty Stone Flotation

Load Body Width: 2.30m

Load Body Length: 3.50m

Side: 600mm

Tyres: 560/60R22.5 Flotation

Heavy duty 2 wheel tip trailer with 6mm load body. Ideal for removing stones from feilds and building of roads.

Erdvark 10 Ton Heavy Duty Stone Flotation

Load Body Width: 2.30m

Load Body Length: 3.60m

Side: 600mm

Tyres: 560/60R22.5 Flotation   –  385/65-R22.5 Double Axle

Heavy duty 2 wheel tip trailer with 6mm load body. Ideal for removing stones from feilds and building of roads.

Erdvark 12 Ton Heavy Duty Stone Double Axle

Load Body Width: 2.30m

Load Body Length: 4.35m

Side: 600mm

Tyres: 385/65-R22.5 Double Axle

Heavy duty 2 wheel tip trailer with 6mm load body. Ideal for removing stones from feilds and building of roads.
